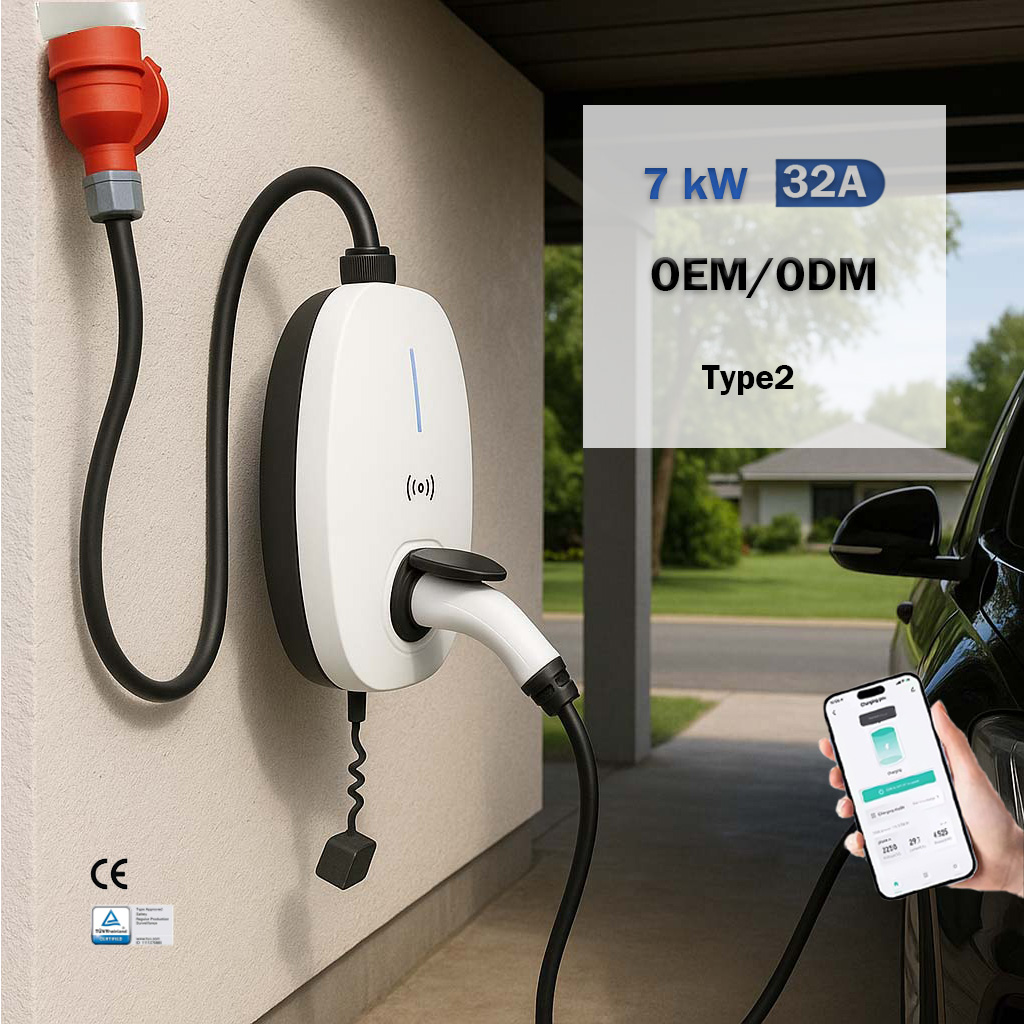

Wall Mounted 7kW 32A Electric Vehicle Charging Station IP65 Waterproof Type 2 Smart Wallbox With APP Control
Additional information
- 7kW Power Output: Provides ample charging power for electric vehicles.

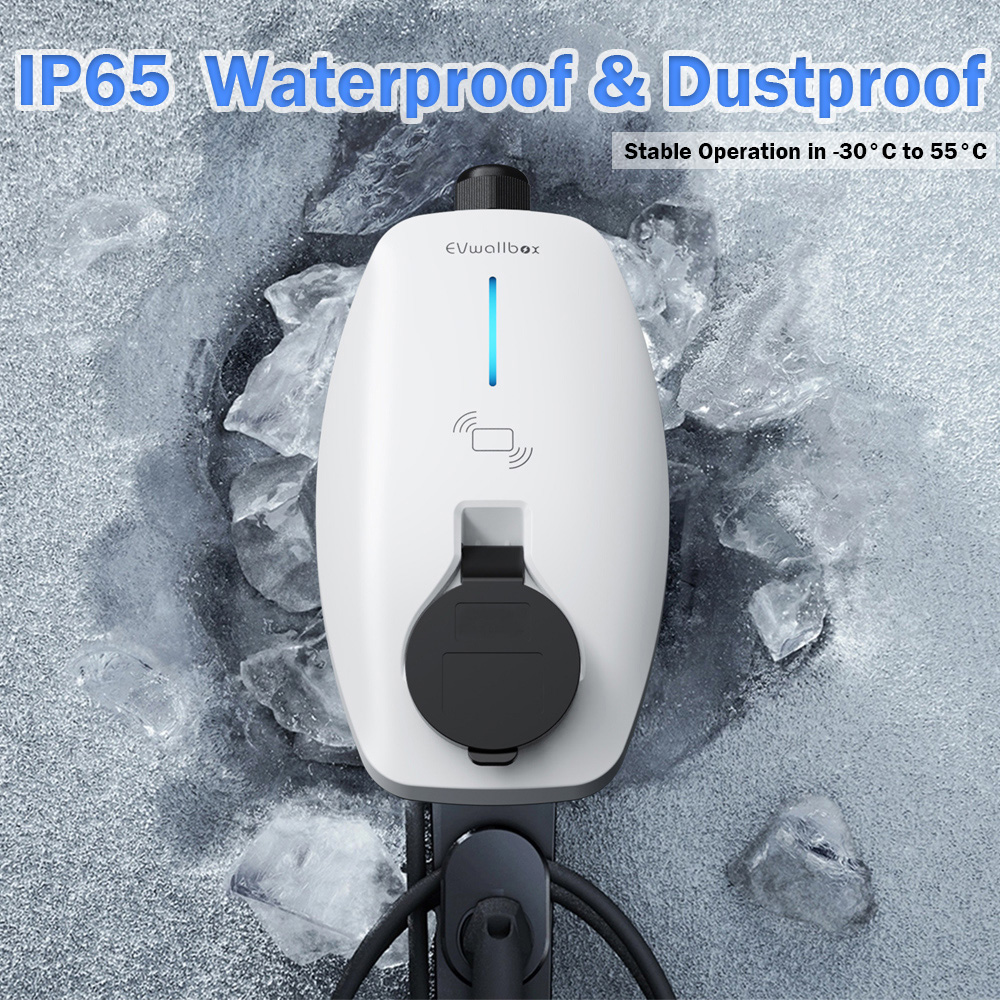

- IP65 Waterproof: Ensures durability against weather elements, ideal for outdoor use.
- Smart Connectivity: Supports Tuya App and RFID Card for convenient control.
- Wide Voltage Range: Compatible with 380V and 250V inputs for flexibility.
- Compact Design: Dimensions 264.83*144.6*100mm, easy to install and space-saving.
|
Wallbox Product parameters
|
||||
|
Product Name
|
7kw 11kw 22kw mini Wallbox
|
|||
|
standrd
|
IEC standard
|
|||
|
certificates
|
CE,FCC
|
|||
|
Product Type
|
FE-AM3-16P3mini
|
FE-AM3-32mini
|
FE-AM3-32P3mini
|
|
|
AC Voltage Power Input
|
380v±10%
|
250V±10%
|
380v±10%
|
|
|
AC Power Output
|
11kw
|
7KW
|
22KW
|
|
|
Current Adjustable
|
8-16A
|
8-32A
|
8-32A
|
|
|
Rated Frequency
|
50/60HZ
|
|||
|
Charging Connector
|
IEC 62196-2 (Type 2/Mennekes) plug
|
|||
|
Internet Connection
|
Tuya App ,RFID Card Optional customization
|
|||
|
Insulation resistance:
|
>1000MΩ（DC500V）
|
|||
|
Contact Resistance
|
0.5mΩMax
|
|||
|
Operating temperature:-
|
-30℃~+50℃
|
|||
|
Protection：Type B RCD
|
||||
|
Over Voltage Protection
|
yes
|
Under Voltage Protection
|
yes
|
|
|
Over Load Protection
|
yes
|
Short Circuit Protection
|
yes
|
|
|
Earth Leakage Protection
|
yes
|
Ground Protection
|
yes
|
|
|
Over-temp Protection
|
yes
|
Surge Protection
|
yes
|
|
|
Charging Cable Length
|
0.5m or Customize Length
|
|||
|
Application:
|
AC Home Charging
|
|||
|
Product dimensions
|
264.83*144.6*100mm
|
|||
|
IP Degree
|
IP65
|
|||
|
Control:
|
RFID Card
|
|||
|
Withstand voltage:
|
2000V
|
|||
|
Contact Resistance
|
0.5mΩMax
|
|||
|
Mechanical life:
|
no-load plug in / pull out > 10000times
|
|||
