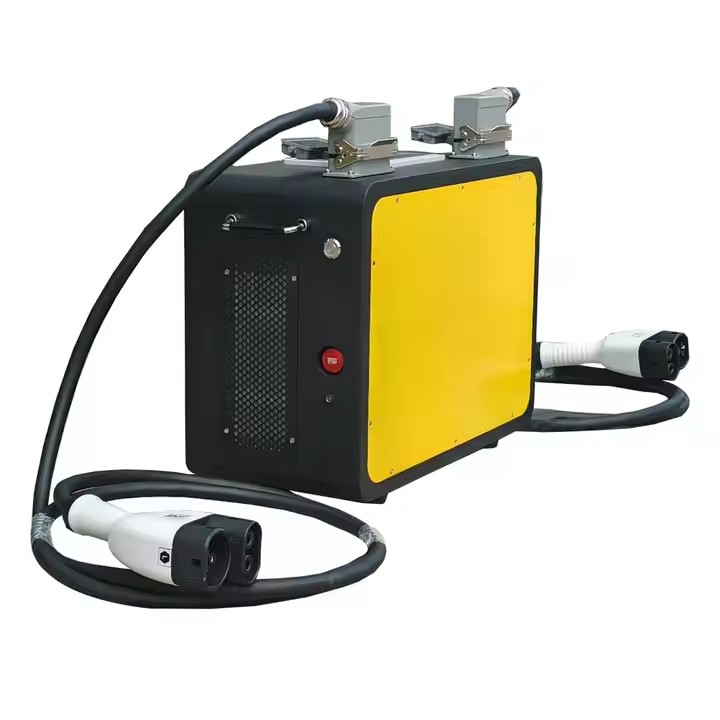

Portable 20kW V2V Discharger for Electric Vehicles – DC 900V Input 750V Output with Internal Backup Battery
Additional information
|
Product Number
|
FSR-V2L
|
|||
|
Working environment
|
Working temperature
|
-40℃~+75℃
|
||
|
Cooling method
|
air cooling
|
|||
|
Altitude
|
Below 2000 meters
|
|||
|
Charging
|
DC input
|
Rated voltage & input current range
|
260Vdc~900Vdc; 0.2~34A
|
|
|
Input Connector
|
CCS1 || CCS2 || GBT ||CHAdeMO || Tesla (Optional)
|
|||
|
DC output
|
Output voltage/current range
|
50Vdc-750Vdc, 0.2-50A
|
||
|
rated power
|
20kw
|
|||
|
Steady flow accuracy
|
≤±1% (output load 20%~100% rated range)
|
|||
|
efficiency(Fully loaded)
|
>95.5%
|
|||
|
Alarm and protection
|
Input over/under voltage protection,Output overvoltage protection,Overcurrent and short circuit protection,Over temperature
protection |
|||
|
Startup method
|
Click on the 7 inch display to start
|
|||
|
Internal battery
|
More than 20 hours of battery life, automatically charging during use. Wearable 12.6V battery charger
|
|||
|
Size (L x D x H)
|
L 550mm x D 260mm x H 400mm (Shell size) L 650mm x D 360mm x H 750mm (Packing size)
|
|||
|
Weight
|
Net Weight < 40kg Gross Weight < 42 kg
|
|||
|
Packaging
|
Carton packaging
|
|||
|
Ingress Protection
|
IP43
|
|||
|
Length of charging cable
|
2.5m/3.5m/5m (Optional)
|
|||
