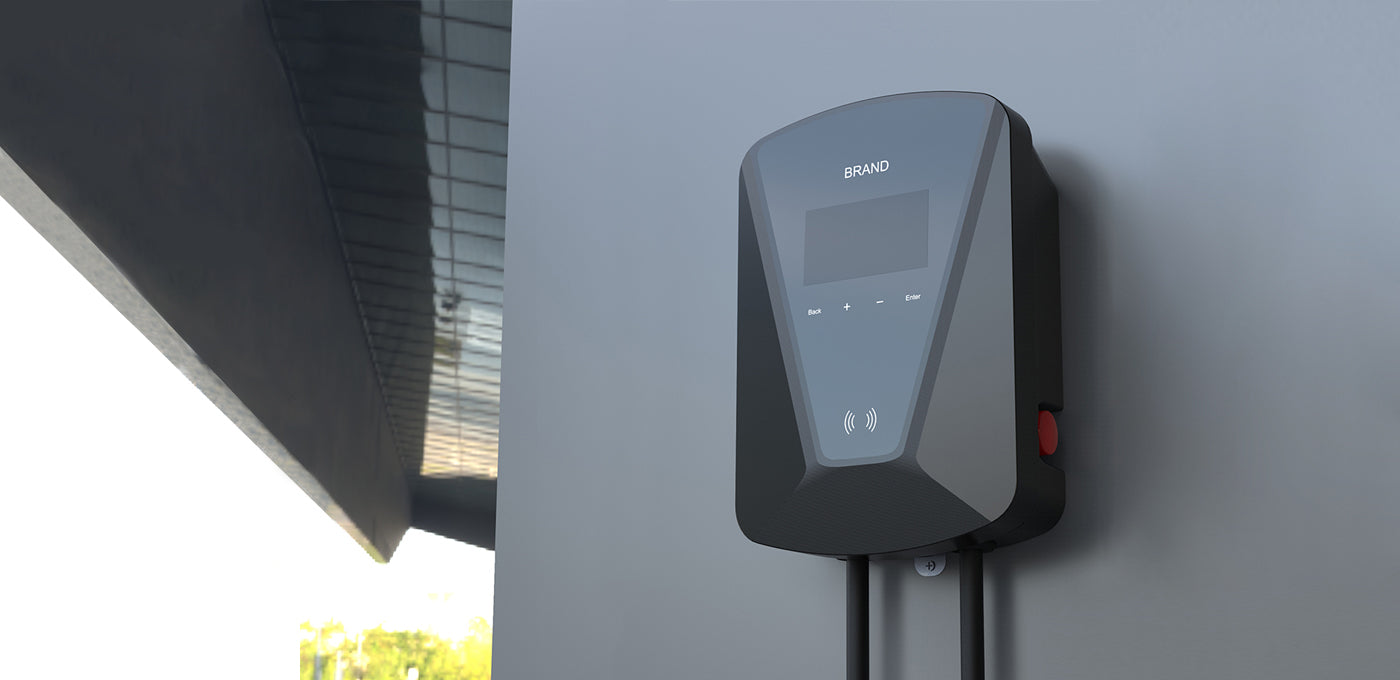

Fisher-Wallbox EV Charger(FE-AM32)
Feautres:
4.3” LCD display screen
Cancel/start card swiping function
IP65
OCPP
TypeA/TypeA+DC6mA RCD
7kW/11kW/22kW
Type 1 /Type2/GBT Connector
Plug&Play / RFID/APP
Compatible with 99% of electric vehicles on the market
Easy to install, suitable for both indoor and outdoor settings
DLB Supported(optional)
Additional information
MECHANICAL PROPERTIES
Impact of external force :can afford 1m drop and 2t vehicle run over pressure
ELECTRICAL PERFORMANCE
The ratedvoltage:250V/415V
Insulation resistance:> 1000MQ (DC500V) Terminal temperature rise: <50K
Withstand voltage:2000V Contact Resistance:0 5mQMax
Coupled insertion force: >45N < 80N Operating temperature:-30C~+50 C
CONTROL BOX FUNCTION
Over voltage and under-voltage protection (self-check recovery)
Lightning protection
Over current protection
Overheating protection
Black/other colors need to be customized
APPLIED MATERIALS
bush: Copper alloy, silver plating
Pin: Copper alloy,silver + thermoplastic on the top
SPECIFICATION
|
Wallbox Product parameters
|
||||
|
Product Name
|
7kw 11kw 22kw Wallbox AC Fast Electric EV Charging Station EV Car Charger
|
|||
|
standrd
|
IEC standard
|
|||
|
certificates
|
TUV,UKCA,CE,FCC
|
|||
|
Product Type
|
FE-AM3-16
|
FE-AM3-16P3
|
FE-AM3-32
|
FE-AM3-32P3
|
|
AC Voltage Power Input
|
240v±10%
|
380V±10%
|
240v±10%
|
380V±10%
|
|
AC Power Output
|
16A/3.5kw
|
16A/11KW
|
32A/7KW
|
32A/22KW
|
|
Current Adjustable
|
8-16A
|
8-16A
|
8-32A
|
8-32A
|
|
Rated Frequency
|
50/60HZ
|
|||
|
Charging Connector
|
IEC 62196-2 (Type 2/Mennekes) plug
|
|||
|
Connector Type
|
SAE J1772 (Type 1)
|
IEC 62196-2 (Type 2)
|
||
|
Internet Connection
|
NFC/wifi
|
|||
|
Insulation resistance:
|
>1000MΩ（DC500V）
|
|||
|
Contact Resistance
|
0.5mΩMax
|
|||
|
Operating temperature:-
|
-30℃~+50℃
|
|||
|
Protection：Type B RCD
|
||||
|
Over Voltage Protection
|
yes
|
Under Voltage Protection
|
yes
|
|
|
Over Load Protection
|
yes
|
Short Circuit Protection
|
yes
|
|
|
Earth Leakage Protection
|
yes
|
Ground Protection
|
yes
|
|
|
Over-temp Protection
|
yes
|
Surge Protection
|
yes
|
|
|
Charging Cable Length
|
5m or Customize Length
|
|||
|

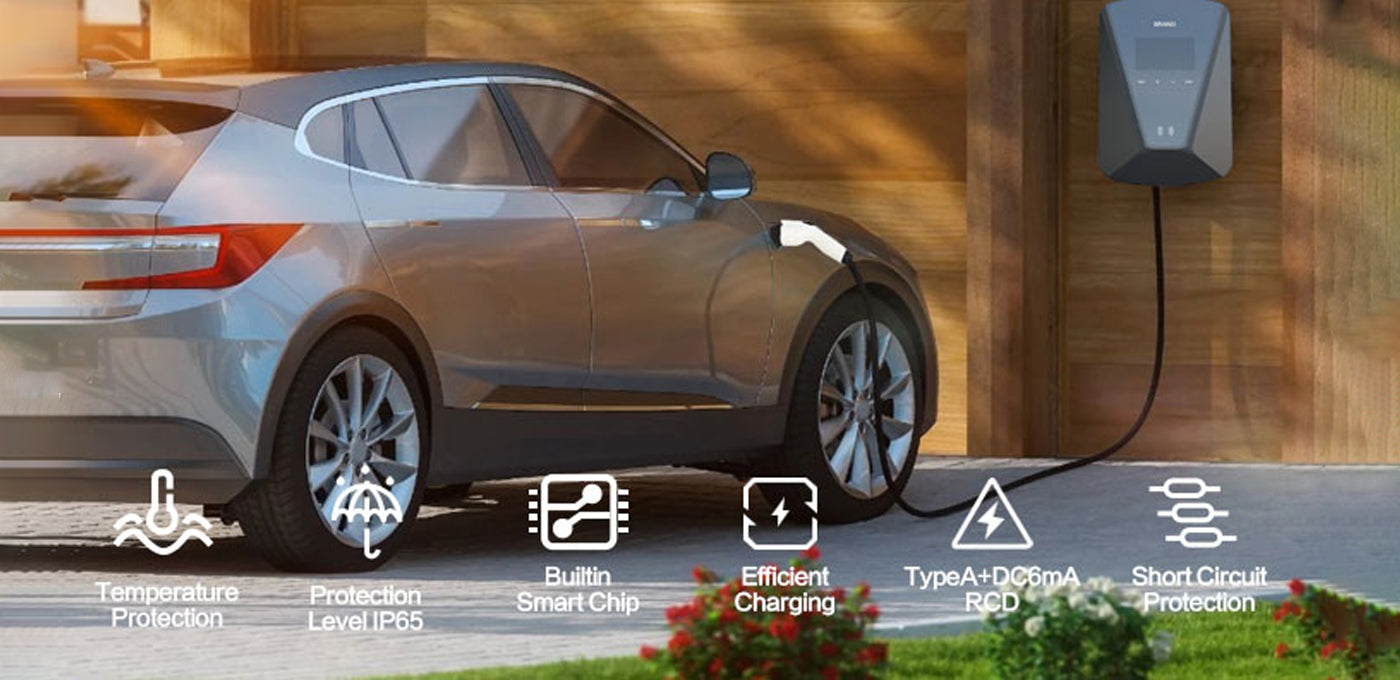

Application:
|
AC Home Charging
|
|||
|
IP Degree
|
IP55
|
|||
|
Control:
|
Auto/Button/Card
|
|||
|
Withstand voltage:
|
2000V
|
|||
|
Contact Resistance
|
0.5mΩMax
|
|||
|
Mechanical life:
|
no-load plug in / pull out > 10000times
|
|||
