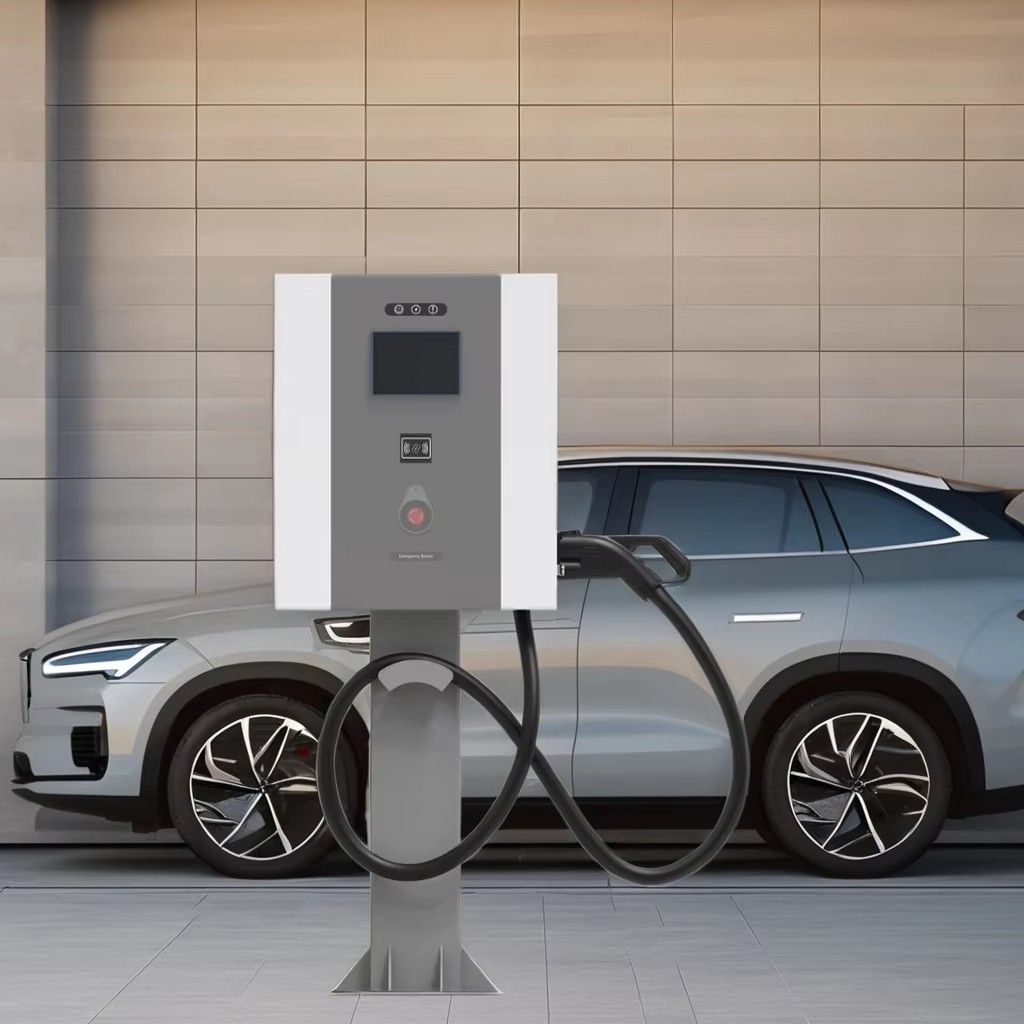

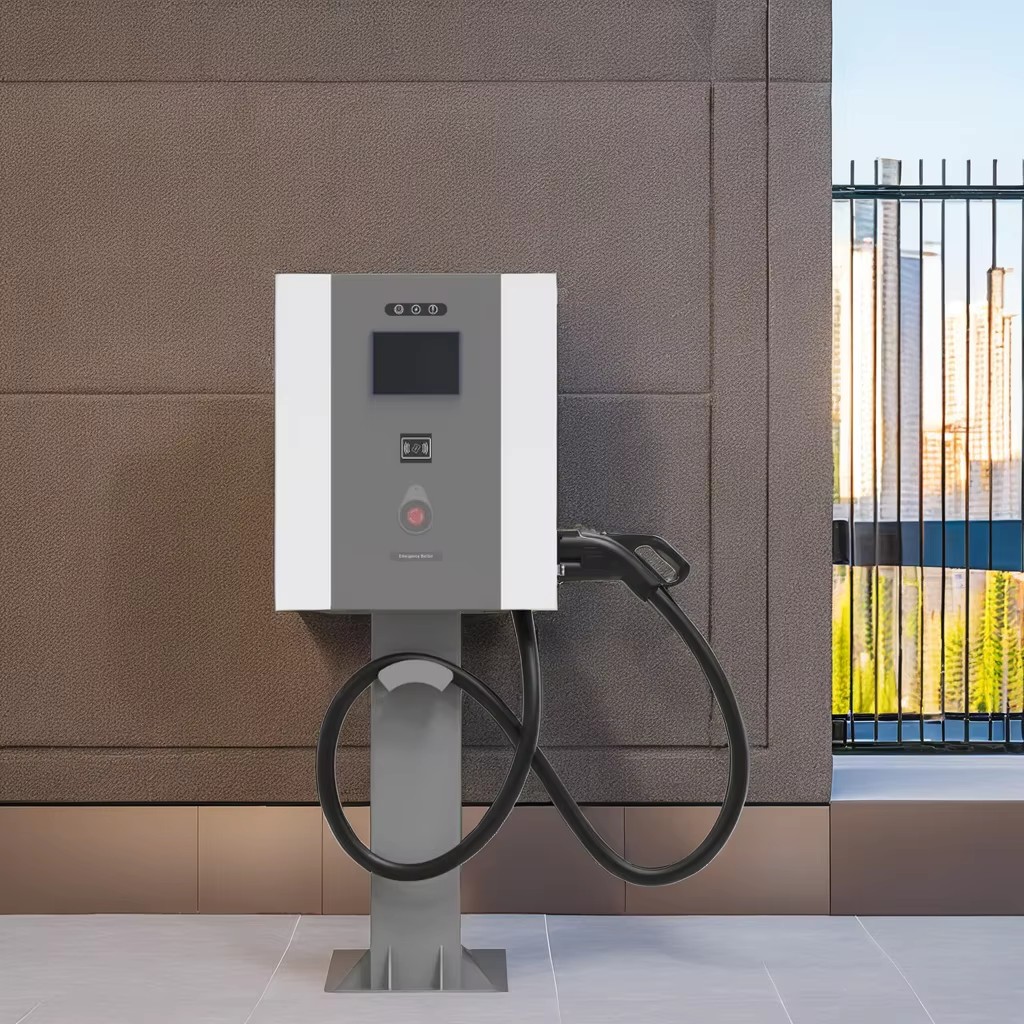

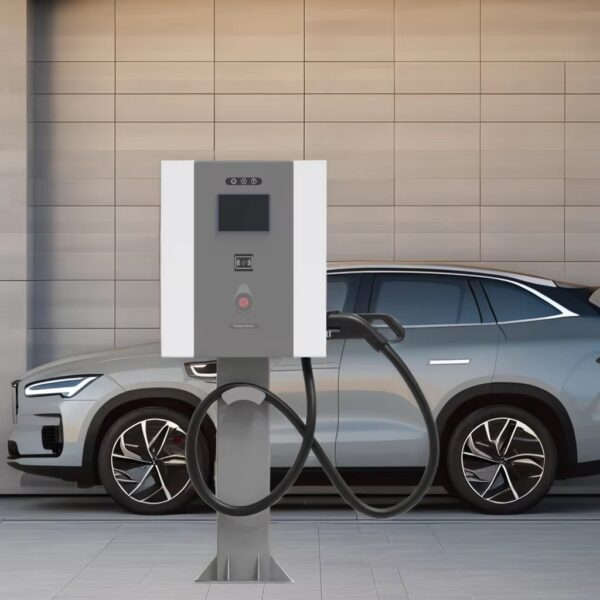

120kW EV Charger Fast Charger Station With Ccs1 Ccs2 Chademo Plug DC Fast Ev Charger factory
Additional information
| Input Voltage | 200 – 1000V |
|---|---|
| Output Power | 120kW |
| Input | 400VAC / 480VAC (3P+N+PE), 50/60Hz |
|
Product Number
|
WY05-60kW
|
|||
|
Input
|
400VAC / 480VAC (3P+N+PE) || 50/60Hz
|
|||
|
Output Voltage
|
200 – 1000VDC
|
|||
|
Output current
|
0 to 200A
|
|||
|
Connectors
|
CCS1 || CCS2 || CHAdeMO || GBT *Single and Dual
|
|||
|
Single-gun charging mode
|
CCS1 – 200A || CCS2 – 200A || CHAdeMO – 150A || GBT- 200A
|
|||
|
Parallel Charge Mode (Optional)
|
30 kW per Port
|
|||
|
Efficiency
|
≥94% at nominal output power
|
|||
|
Power factor
|
＞0.98
|
|||
|
Operating temperature
|
-30°C to 55°C
|
|||
|
Altitude
|
< 2000m
|
|||
|
Working || Storage Humidity
|
≤ 95% RH || ≤ 99% RH (Non-condensing)
|
|||
|
Display
|
7’’ LCD with touch screen
|
|||
|
RFID system
|
ISO/IEC 14443A/B
|
|||
|
Dimensions (L x D x H)
|
650mm x 300mm x 1650mm
|
|||
|
Ingress Protection
|
IP54 || IK10
|
|||
|
Power Electronics Cooling
|
Air Cooled
|
|||
|
Weight
|
150kg
|
|||
|
Insulation (input – output)
|
＞2.5kV
|
|||
|
Regulatory Compliance
|
CE || EMC: EN 61000-6-1:2007, EN 61000-6-3:2007/A1:2011/AC:2012
|
|||
|
Charging Protocol Standards
|
Mode 4 – IEC-61851, ISO-15118, DIN 70121Mode 4 – CHAdeMO 2.0 Mode 4 – GB/T 18487 2023, GB/T 20234 2023, GB/T 27930 2023
|
|||
|
Length of charging cable
|
5m
|
|||
|
Communication protocol
|
OCPP 1.6J
|
|||
|
Access Control
|
RFID: ISO/IEC 14443A/B || Credit Card Reader (Optional)
|
|||
|
Communication
|
Ethernet – Standard || 3G/4G Modem (Optional)
|
|||
|
Electrical Safety: GFCI
|
RCD 30 mA Type A
|
|||
|
Electrical Safety: Surge Protection
|
20 kA
|
|||
|
Electrical Safety General
|
Over Voltage, Under Voltage, Over Current, Missing Ground
|
|||
|
Electrical Safety: Output Short
|
Output power disabled when output is short circuited
|
|||
|
Electrical Safety Temperature
|
Temperature Sensors @ Charge Coupler and Power Electronics
|
|||
|
Emergency Stop
|
Emergency Stop Button Disables Output Power
|
|||
